4117 Clutch Plate, Complete
- Description:

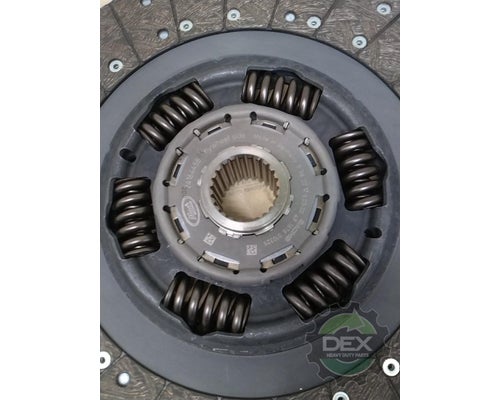

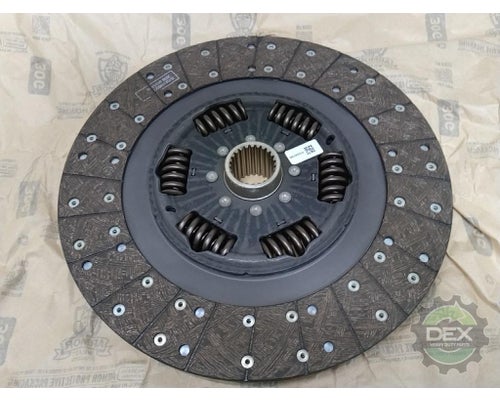

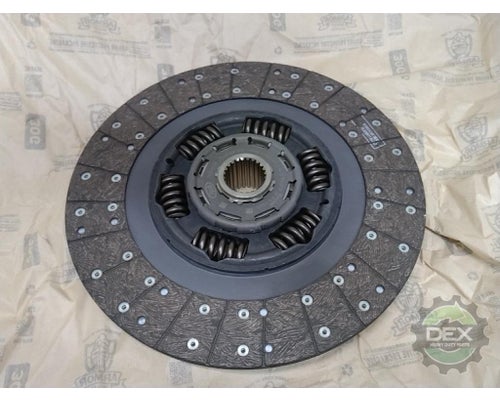

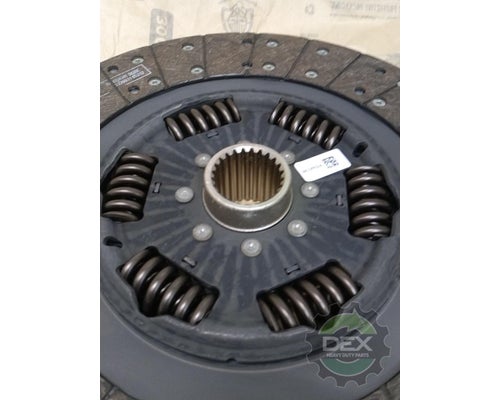

MACK/VOLVO 430mm DIAMETER, 24 SPLINE TEETH, 46x50-24N (HUB PROFILE) DISC CLUTCH (FRICTION DISC) 22442380, CORE GROUP 22442380; CROSS REFERENCES 22442367, 22442376, 22442379, 24164452, 24164453, 24164458, & 85020849. BECAUSE OF THE 430mm CLUTCH SIZE, THIS DISC IS TYPICALLY FOUND IN VOLVO D11/D13/D16 & MACK MP7/MP8/MP10 ENGINES PAIRED WITH VOLVO I-SHIFT & MACK M-DRIVE TRANSMISSIONS.
THIS IS NOT THE COMPLETE CLUTCH ASSEMBLY - JUST THE DRIVEN CLUTCH DISC THAT SITS BETWEEN THE FLYWHEEL AND THE PRESSURE PLATE. THIS CAN BE PAIRED WITH PRESSURE PLATE 24157504.
THE CLUTCH DISC SPLINES ONTO THE TRANSMISSION INPUT SHAFT, GETS CLAMPED BETWEEN THE ENGINE FLYWHEEL & PRESSURE PLATE, TRANSFERS ENGINE TORQUE TO THE TRANSMISSION WHEN THE CLUTCH IS ENGAGED, THEN RELEASES TORQUE FLOW WHEN THE CLUTCH PEDAL IS DEPRESSED TO ALLOW SHIFTING WITHOUT DAMAGING GEARS.
- Application:
- Truck
- Tag#:

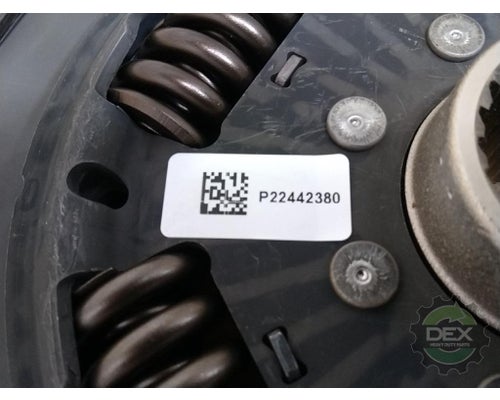

- 22442380
- OEM#:
- 22442380
- Category:
- Surplus A
- Condition:
- Level 4
- Available:
- 10
- Location:
- Advance, NC
- Core Charge (per):
- $0.00
- Price (per):
- $249.59
